Pepperl Fuchs ENI90PL-H25JA5-1024UD1-RC1 Incremental rotary encoder
General specifications
Detection type photoelectric sampling
Linearity error ± 0.025 °
Pulse count max. 5000
Functional safety related parameters
MTTFd 435 a
Mission Time (TM) 10 a
Diagnostic Coverage (DC) 0 %
Electrical specifications
Operating voltage 4.75 ... 30 V DC
No-load supply current max. 50 mA
Output
Output type push-pull or RS422 (universal output driver, output level depending on input voltage)
Load current max. per channel 40 mA , short-circuit protected, reverse polarity protected
Output frequency max. 400 kHz
Rise time 300 ns
Phase position A to B
Pulse counts < 3600 90 ° ± 9 ° electrical
Pulse counts ≥ 3600 90 ° ± 25 ° electrical
Duty cycle 1/2 ± 10 %
Connection
Connector M12 connector, 8-pin
M12 connector, 5 pin
M23 connector, 12-pin , clockwise rotation
M23 connector, 12-pin , counter clockwise rotation
10-pin MIL connector
7-pin MIL connector
Cable ∅6 mm, 4 x 2 x 0.14 mm2
Standard conformity
Degree of protection DIN EN 60529, IP65, IP66, IP67
Climatic testing DIN EN 60068-2-78 , no moisture condensation
Emitted interference EN IEC 61000-6-4:2019
Noise immunity EN IEC 61000-6-2:2019
Shock resistance DIN EN 60068-2-27, 300 g, 6 ms
Vibration resistance DIN EN 60068-2-6, 30 g, 10 ... 2000 Hz
Approvals and certificates
UL approval E223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request
Maximum permissible ambient temperature max. 80 °C (max. 176 °F)
Ambient conditions
Operating temperature -40 ... 85 °C (-40 ... 185 °F) , cable, fixed installation
-5 ... 85 °C (23 ... 185 °F) , movable cable
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Product Tags:
|
|

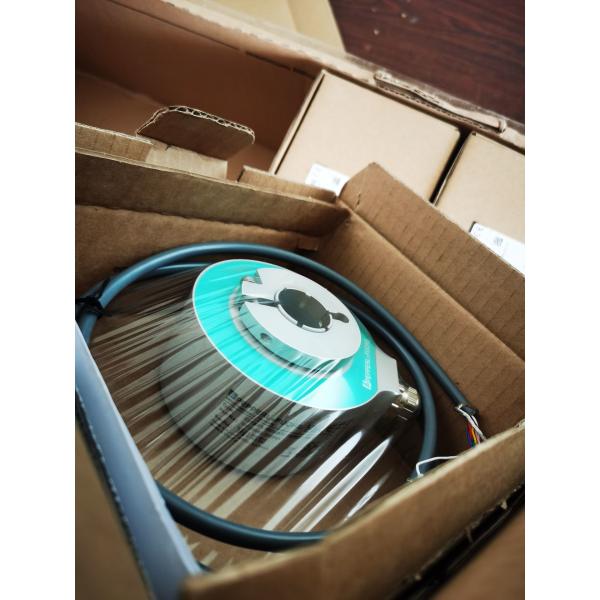

Pepperl Fuchs ENI90PL-H25JA5-1024UD1-RC1 Incremental rotary encoder Images
|
